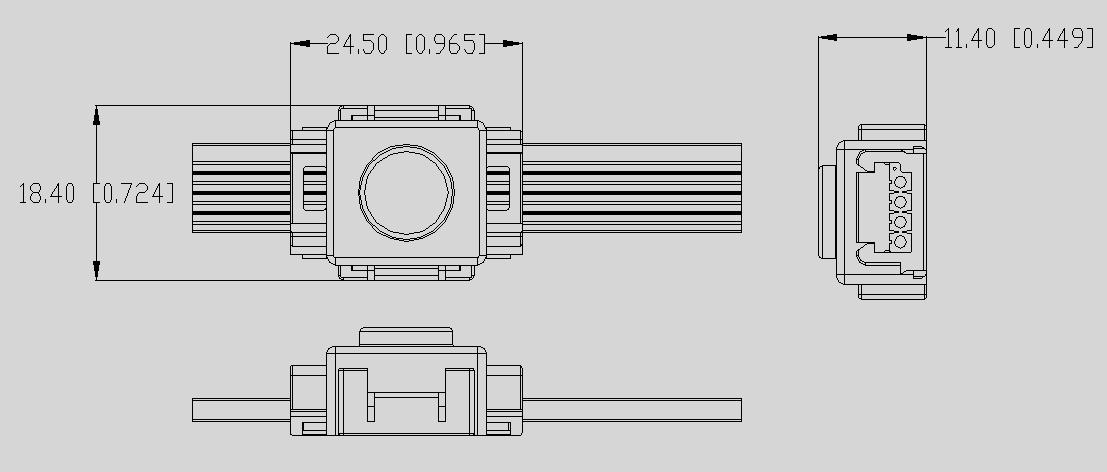

A1 Mesh Specification Sheet

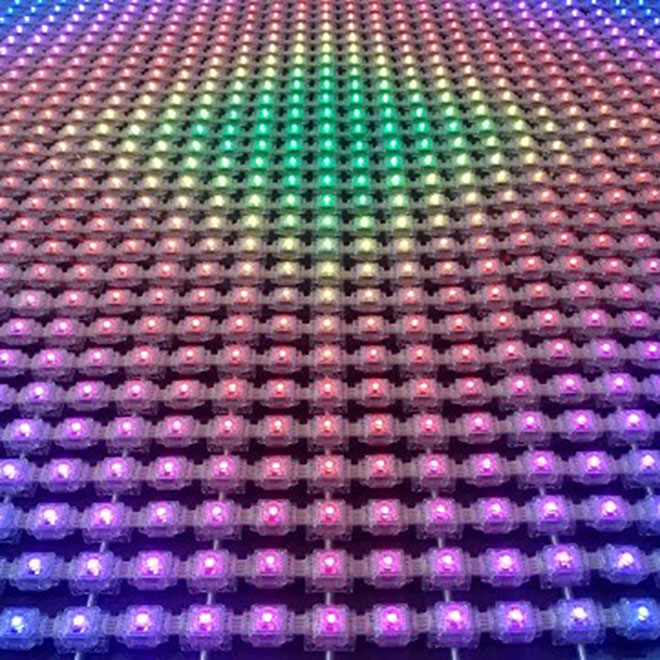

A1 Mesh is flexible full-color fashionable led display with creativity and artistry.It is IP66-rated, UV-resistant, and designed to withstand outdoor elements, rendering it a reliable solution for both indoor and outdoor environments. By providing a visual medium capable of being scaled to any size,complete with wide-angle viewing of more than 120 degrees, application for various media solutions.( advertising, mega screen, media facade, etc )
Model NO. | A1 Mesh-P30 | A1 Mesh-P40 | A1 Mesh-P50 |
Pixel Pitch | 30mm | 40mm | 50mm |
Pixel Density | 1089 pixel/m² | 625 pixel/m² | 400 pixel/m² |
Brightness | ≥3267cd/m² | ≥1875cd/m² | ≥1200cd/m² |
Transparency | 45% | 60% | 69% |
Weight | 5.8kg/㎡ | 4.3kg/㎡ | 3.5kg/㎡ |
Max.Power Consumption | ≤330W/m² | ≤190W/m² | ≤120W/m² |
Ave.Power Consumption | ≤220W/m² | ≤110W/m² | ≤70W/m² |
Dimensions(L x W x H) | 1920 x 480 x 17.6mm | 2560 x 640x 17.6mm | 3200 x 800 x 17.6mm |
LED Type | RGB 3IN1 SMD2727 | ||
Visual Angle | Vertical 120° Horizontal 120° | ||
Gray Scale | 12 bit,4096 levels | ||
Date Refresh Rate | ≥800Hz | ||
Color Range | 16.7 Million additive RGB colors | ||
Operation Power | AC110~ 240V, 50/60Hz | ||
Working Environment | Temperature -20℃~+60℃，Humidity10~90% RH | ||
IP Rating | IP66 with led string ,with signal distributor and power box(TOP:IP65, BOTTOM:IP54) | ||
Operating Life | >100000h | ||
Control | PWM | ||
Addressing Options | Auto-Addressing | ||
Data Source | TTL | ||
Advantages:
· High transparency for special needs;
· Fast installation and maintaining,easy transport ;
· Auto producing with low cost;
