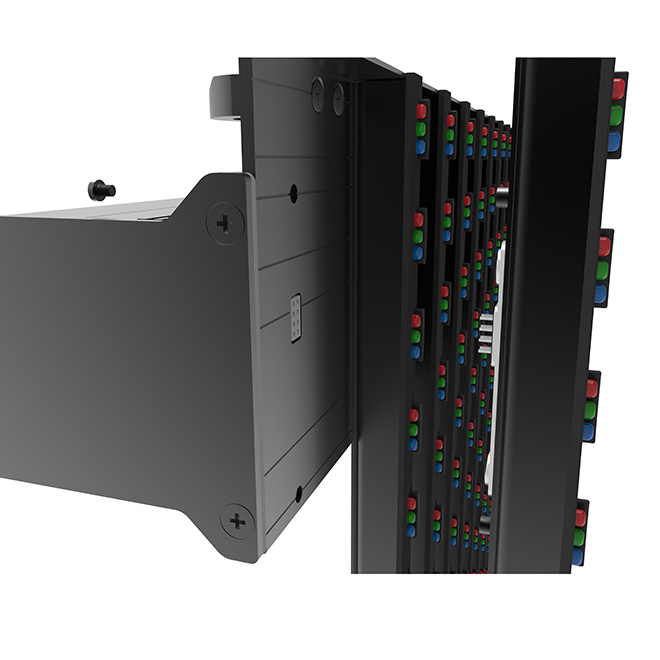

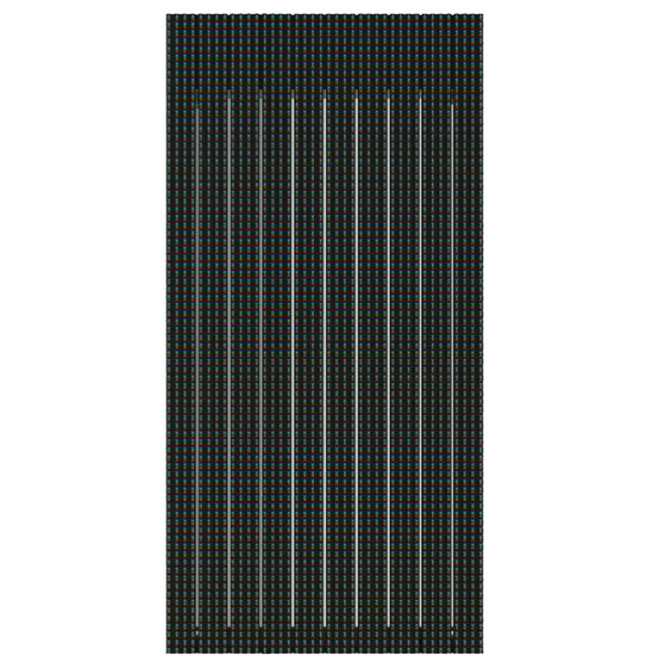

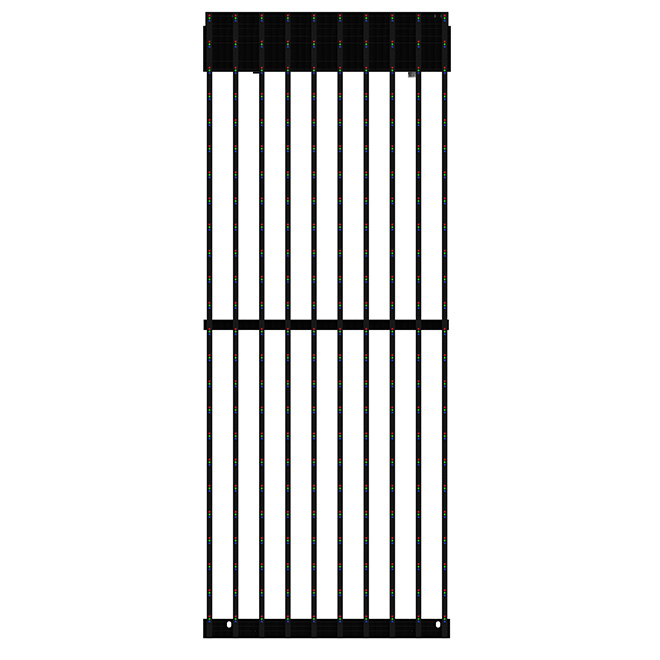

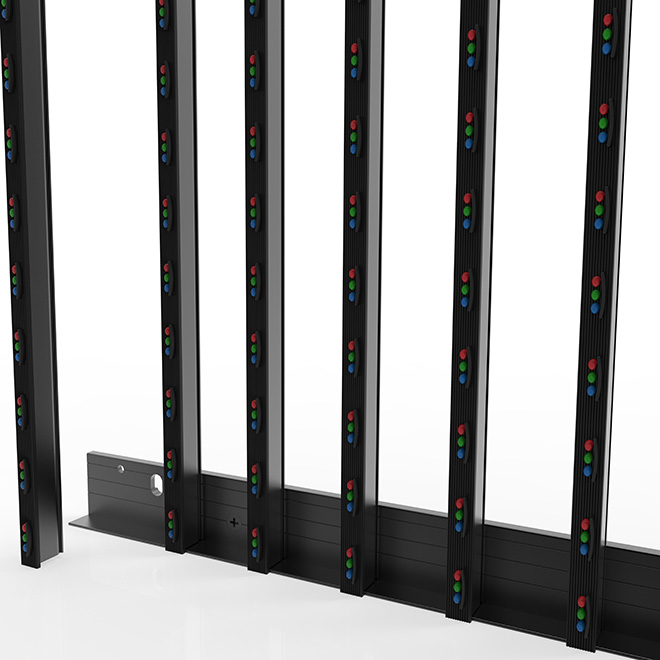

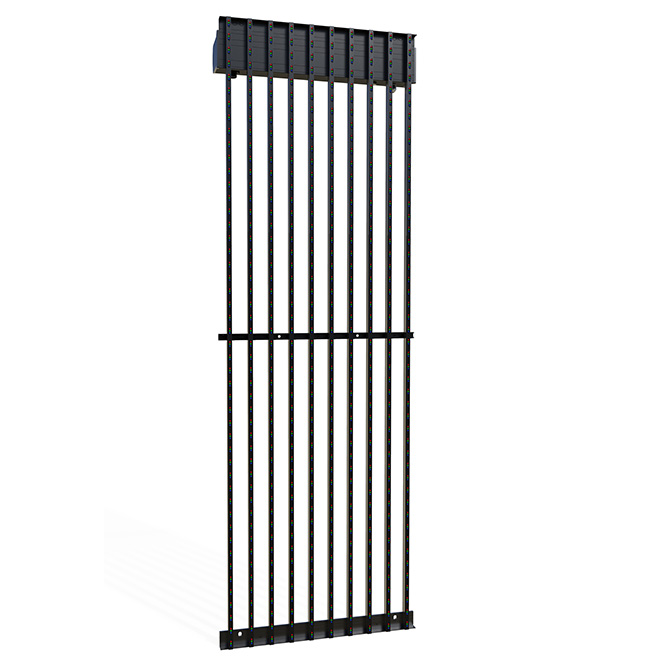

DIP mediafacade-LV series
Next Generation Mesh LED Display with DIP pixel for Outdoor Applications. Excellent performance in strong direct sunlight with 8000nits High Brightness. Dynamic image with 3840 hz high refresh rate
| Parameter | Specification | |||
| Product model | LV 15.625-31.25 | LV 25-31 | LV 25-50 | LV 50-40 |
| Pixel configuration | 1R1G1B / 3R3G3B | |||
| LED type | DIP 346 | |||
| Pixel Pitch(mm) | 15.625mm/31.25mm | 25mm/31.25mm | 25mm/50mm | 50 mm/40mm |
| Cabinet size(W×H×D) | L500×H1500mm / L512×H1536 mm/ L500×H1000mm | |||
| Cabinet resolution(W×H) | 32 x 50 | 16×60 | 10×60 | 10×25 |
| Pixel density | 2048 dots/㎡ | 1280dots/㎡ | 800dots/㎡ | 500 dots/㎡ |
| Cabinets position | Vertically/Horizont | |||
| Transparency level | 65% | 69% | 80% | 58% |
| Brightness | ≥8000nit | ≥7200nit | ≥6500nit | 8750nit |
| Weight | 13KG/㎡ | 13KG/㎡ | 10KG/㎡ | 7.5 KG/㎡ |
| Maximun power consumption | 305W/㎡ | 330W/㎡ | 280W/㎡ | 303 W/㎡ |
| Average power consumption | 130W/㎡ | 110W/㎡ | 95W/㎡ | 170W/㎡ |
| Viewing Angle | H120°/V120° | |||
| Waterproof | IP67 | |||
| Cabinets width | 113mm | |||
| Width after install | 150mm | |||
| Wind resistancy level | 12 | |||
| Cabinet material | AISI Type 316 Stainless steel & Aluminum | |||
| Service method | Front & rear | |||
| Scanning | Static | |||
| White balance | 3200-9300K | |||
| Frame-changing frequency | 60Hz | |||
| Working temperature | -40℃- 60℃ | |||
| Storage temperature | -55℃120℃ | |||
| Life time | ≥100,000 hours | |||
| Input voltage(V) | AC110-220V | |||
| Grey scale | 16bit | |||
